Energy Storage
Dynamic Load Management for Public Fast-Charging Infrastructure
Project

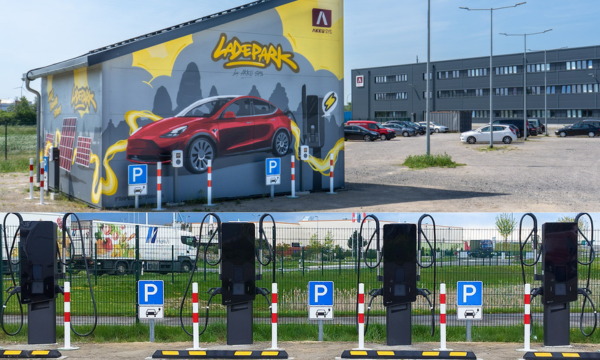

The energy hub with charging park of the distributor AKKU SYS illustrates sector coupling and application possibilities of commercial storage systems at the production and logistics site in Süderholz.
The system features the following components:
-
Control of the entire system by a central energy management system
-
Self-consumption optimization of the PV system on the site roof through battery storage
-
Charging park consisting of four public fast-charging points, each with 50 kW, and additionally four charging points, each with 22 kW, equipped with dynamic load management
-
Commercial storage units shave peak loads, which are, for example, generated by the charging infrastructure
-
Energy hub enables testing of components and functions under real conditions
Solution provided:
-
110 kWp PV system
-
176 kW total inverter capacity
-
200 kWh total capacity of the indoor commercial storage units
