Outdoor Solutions

The BSO is a compact and fully assembled battery storage system for outdoor use. The system is grid-connected and, in combination with a PV system, perfect for applications such as increasing self-consumption or peak shaving. Commissioning is carried out via the web interface, which also displays the loads and energy flows. Individual charging and discharging processes can also be planned during the week. The system can be monitored and maintained in real time from anywhere in the world.

DOWNLOAD BROCHURE

Download

Request a quote

Click down to request a quotation

Request

$rec.get('vw_pdm_prod_detail.prod_image_kid.label')

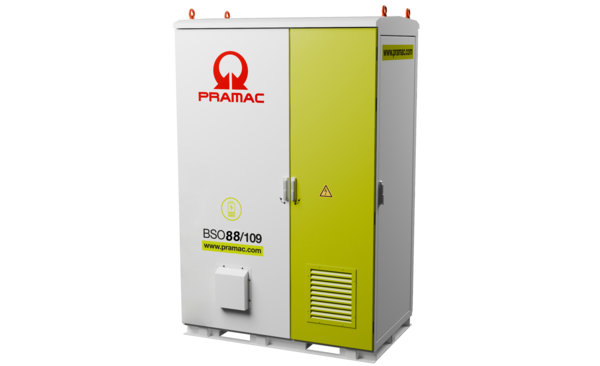

BSO 88/109

General technical data

RATED POWER
kVA
88
RATED VOLTAGE
Vac
400
FREQUENCY
Hz
50
MAXIMUM AC CURRENT
A
128
BATTERY CELL
Type
Li-Ion (LFP) Pouch
TOTAL CAPACITY
kWh
109
RATED NET CAPACITY (90%DOD)
kWh
98

Inverter

QUANTITY
n.
1
RATED POWER
kVA
88

Battery

MODULE CAPACITY
kWh
4.74
QUANTITY OF MODULE
n.
23
CYCLES @ 90% DOD | 65% SOH | 1C/1C
n.
7300
